Adding models to tidyclust

Kelly Bodwin, California Polytechnic State University

These slides: kbodwin.github.io/Talks-and-Presentations/UseR_2025/slides.html

What is tidyclust?

tidymodels: A unified framework for predictive models

Specify:

lin_reg <- linear_reg(x ~ y, data = dat)

Fit:

lr_fitted <- lin_reg |> fit(dat)

Predict:

lr_fitted |> predict(new_dat)

https://www.tidymodels.org/ - Max Kuhn, Hannah Frick, Emil Hvitfeldt, Simon Couch

tidyclust: A unified framework for unsupervised models

Specify:

km_clust <- k_means(~ y, num_clusters = 3, data = dat)

Fit:

km_fitted <- km_clust |> fit(dat)

Predict:

km_clust |> predict(new_dat)

https://tidyclust.tidymodels.org/ - Emil Hvitfeldt, me

Why we like this

  • The same data preprocessing (a.k.a. recipe) can be used with many model specifications.

  • Shortcuts for cross-validation and tuning.

  • (whatever that means in an unsupervised setting…)

  • More consistency of user input.

Example: Many k-means functions!

In Base R (stats):

kmeans(x,
       centers,
       iter.max = 10,
       nstart = 1,
       algorithm = c("Hartigan-Wong",
                     "Lloyd",
                     "Forgy",
                     "MacQueen"),
       trace = FALSE)

In the ClusterR package:

KMeans_rcpp(
  data,
  clusters,
  num_init = 1,
  max_iters = 100,
  initializer = "kmeans++",
  fuzzy = FALSE,
  verbose = FALSE,
  CENTROIDS = NULL,
  tol = 1e-04,
  tol_optimal_init = 0.3,
  seed = 1
)

Adding a model to tidyclust

  • Adding a model means creating a new specification function

  • This unifies many engines that use the same(ish) algorithm.

  • Just a simple little wrapper function in tidyclust style?

Expanding tidyclust

Cal Poly MS Student projects

{width = 2in} Andrew Kerr, Jacob Perez, Brendan Callendar, me

Jacob Perez: BIRCH

BIRCH is an algorithm that aggolmeratively pre-clusters large data into clustering factors, then applies a traditional clustering method.

brch_spec <- birch(radius_threshold = 1.5,
                        branching_factor = 500,
                        max_leaf = 500,
                        global_method = "k_means",
                        num_clusters = 7)

Brendan Callendar: DBSCAN and Gaussian Mixtures

brendad8/tidyclust

DBSCAN is a density-based clustering that combines points withing a particular radius.

db_spec <- db_clust(radius = 0.35, min_points = 10)

Gaussian Mixed Models fits a parametric mixture model to the data.

gm_spec <- gm_clust(
  num_clusters = 3,
  circular = FALSE,
  zero_covariance = FALSE,
  shared_orientation = TRUE,
  shared_shape = FALSE,
  shared_size = FALSE
)

Andrew Kerr: Frequent Itemset Mining

Wander03/tidyclust

Frequent Itemset Mining and Association Rules are unsupervised approaches to clustering columns

fi_spec <- freq_itemsets(
  min_support = 0.05,
  mining_method = "eclat"
  )

Code and Housekeeping

  1. Copy-paste from existing specifications to create new tidyclust class for new model.

  2. Write helper functions for managing engine fits and predicts

  3. Create tuning infrastructure in tidyclust and dials

My checklist here.

Big Decisions

  1. What will be the exposed hyperparameters and their defaults?

  2. What algorithm variants will be used under the hood?

  3. What does prediction look like?

Hyperparameters

Which should be exposed?

Most engines have many, many parameters:

KMeans_rcpp(
  data,
  clusters,
  num_init = 1,
  max_iters = 100,
  initializer = "kmeans++",
  fuzzy = FALSE,
  verbose = FALSE,
  CENTROIDS = NULL,
  tol = 1e-04,
  tol_optimal_init = 0.3,
  seed = 1
)

Which should be exposed?

Some control initial conditions…

KMeans_rcpp(
  data,
  clusters,
  num_init = 1,
  max_iters = 100,
  initializer = "kmeans++",
  fuzzy = FALSE,
  verbose = FALSE,
  CENTROIDS = NULL,
  tol = 1e-04,
  tol_optimal_init = 0.3,
  seed = 1
)

Which should be exposed?

some control details of the mathematical fitting algorithm…

KMeans_rcpp(
  data,
  clusters,
  num_init = 1,
  max_iters = 100,
  initializer = "kmeans++",
  fuzzy = FALSE,
  verbose = FALSE,
  CENTROIDS = NULL,
  tol = 1e-04,
  tol_optimal_init = 0.3,
  seed = 1
)

Which should be exposed?

… some control console output …

KMeans_rcpp(
  data,
  clusters,
  num_init = 1,
  max_iters = 100,
  initializer = "kmeans++",
  fuzzy = FALSE,
  verbose = FALSE,
  CENTROIDS = NULL,
  tol = 1e-04,
  tol_optimal_init = 0.3,
  seed = 1
)

Which should be exposed?

… some control prediction …

KMeans_rcpp(
  data,
  clusters,
  num_init = 1,
  max_iters = 100,
  initializer = "kmeans++",
  fuzzy = FALSE,
  verbose = FALSE,
  CENTROIDS = NULL,
  tol = 1e-04,
  tol_optimal_init = 0.3,
  seed = 1
)

Which should be exposed?

… and only a few are true hyperparameters.

KMeans_rcpp(
  data,
  clusters,
  num_init = 1,
  max_iters = 100,
  initializer = "kmeans++",
  fuzzy = FALSE,
  verbose = FALSE,
  CENTROIDS = NULL,
  tol = 1e-04,
  tol_optimal_init = 0.3,
  seed = 1
)

Rules of Thumb

Expose arguments that…

  • Definitely require user decision-making every time (num_cluster)

  • Might be tuned. (radius)

  • Change the inherent philosophy of the algorithm (linkage_method)

What’s left?

Do NOT expose:

  • Seeds. (Use seed setting on your whole process, not by model.)

  • Mathematical optimization settings.

  • Console output

Maybe expose:

  • Initializations (if they might be tuned)

  • Prediction approaches (if they change tracking during fit)

Unexposed parameters

Remember, engine arguments can always still be changed using set_engine()!

km_spec <- k_means(num_clusters = 3) |>
  set_engine("ClusterR",
             max_iters = 1000,
             initializer = "kmeans++")

Naming and Parametrization

Now, how are we going to combine existing arguments into a single coherent set?

Example: Gaussian Mixed Model constraints

modelNames
A vector of character strings indicating the models to be fitted in the EM phase of clustering. The default is:

for univariate data (d = 1): c("E", "V")

for multivariate data (n > d): all the models available in mclust.options("emModelNames")

for multivariate data (n <= d): the spherical and diagonal models, i.e. c("EII", "VII", "EEI", "EVI", "VEI", "VVI")

Naming and Parametrization

  • Do we keep the existing format of the modelNames argument, or reparametrize?

  • Decision: Reparametrize!

  • The various combinations (“EII”, “VEI”, etc.) correspond to:

    • Do the mixture models have any covariance across dimensions?
    • Do all mixtures have the same covariance?
    • … etc.

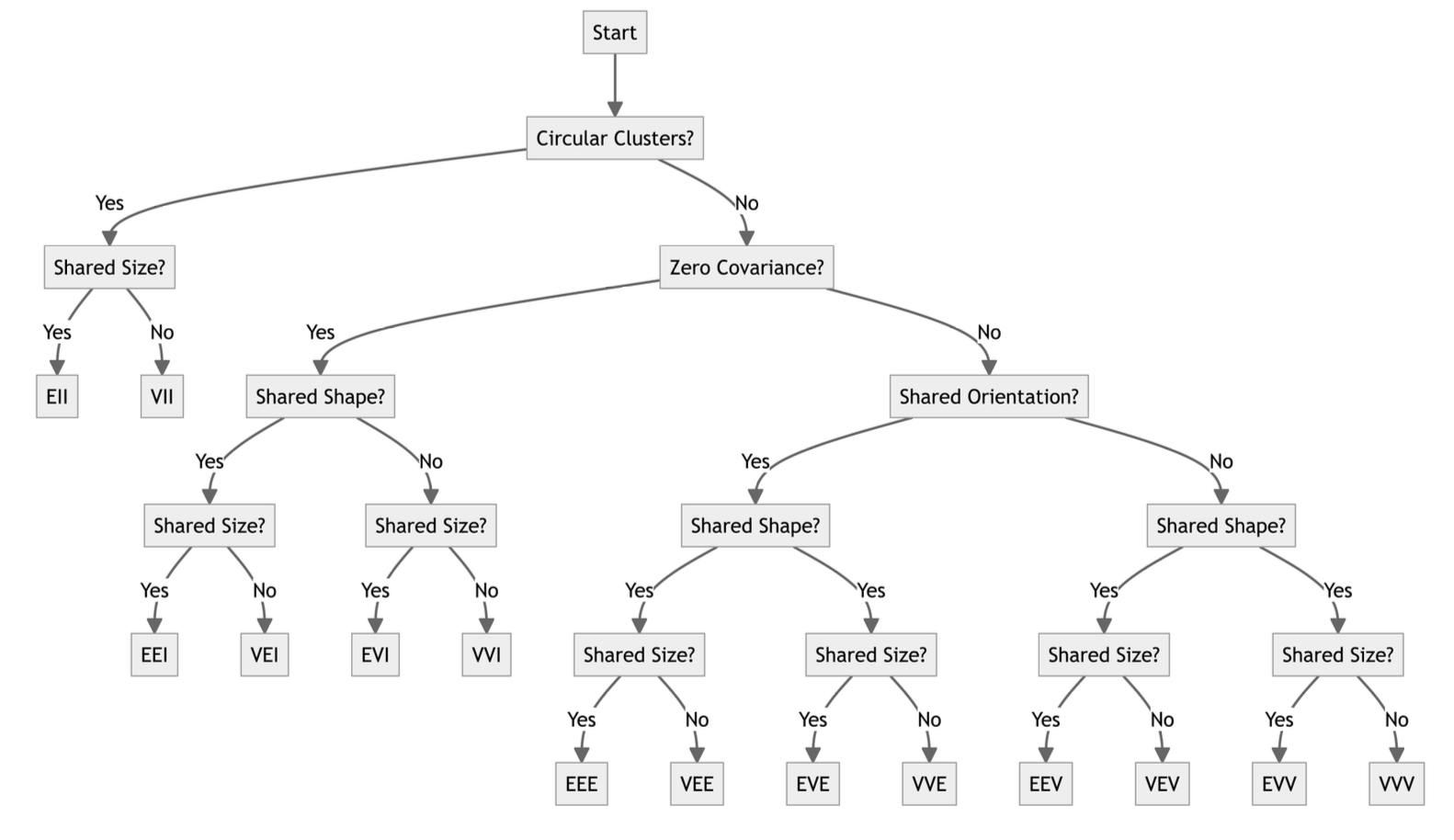

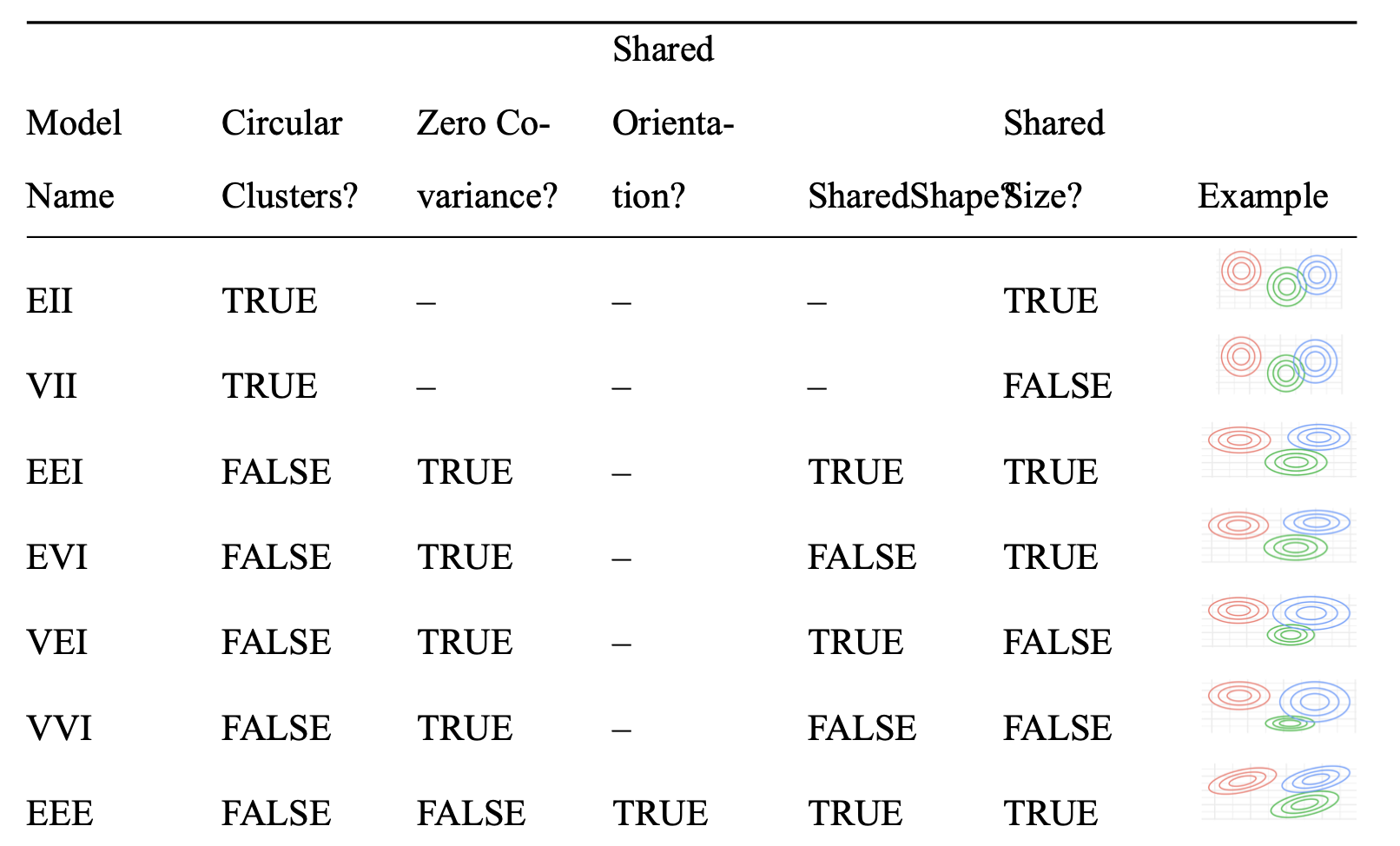

Gaussian Mixture Model Options

Gaussian Mixture Model Options

Naming and Parametrization

Things to think about…

  • Self-documenting arguments.

  • Generalizability across implementations (engines)

  • Decision support for users - “upgrades” from defaults are clear.

  • Easy tuning - booleans may be better than strings?

Defaults and Tuning

Other housekeeping…

  • What will be the default values for all the exposed parameters? Why?

  • Do we want to override any defaults of unexposed parameters? Why? (This appears in the fit() helpers.)

  • What will be the default tuning grid? Log scale? What range? etc. (in the dials() package)

  • Does the tuning grid depend on the dataset or can we establish a global default?

Fit/Predict Algorithms

fit helpers and overrides

Quick quiz: How does the stats::kmeans() function initialize centroids? How about ClusterR::KMeans_rcpp()?

WRONG!

(probably, I dunno, maybe the author is in the audience)

(or you clicked ahead in my slides)

stats::kmeans()

  1. Assign each observation a random number 1:k

  2. Compute “centroid” of each “cluster”.

fit helpers and overrides

ClusterR::KMeans_rcpp():

‘k-means++’ : selects initial cluster centroids using sampling based on an empirical probability distribution of the points’ contribution to the overall inertia. This technique speeds up convergence. The algorithm implemented is “greedy k-means++”. It differs from the vanilla k-means++ by making several trials at each sampling step and choosing the best centroid among them.

Should we let the engine decide or force a unified default?

predict helpers and overrides

Easy mode: k-means

  • How to predict the cluster assignment of a new observation?

  • The k-means algorithm clusters by nearest centroid…

  • … so just assign the point to a cluster based on nearest centroid!

predict helpers and overrides

Hard mode: Hierarchical Clustering

  • ???????
.hier_clust_predict_stats <- function(
  object,
  new_data,
  ...,
  prefix = "Cluster_"
) {
  linkage_method <- object$method

  new_data <- as.matrix(new_data)

  training_data <- as.matrix(attr(object, "training_data"))
  clusters <- extract_cluster_assignment(
    object,
    ...,
    prefix = prefix,
    call = call("predict")
  )

  if (linkage_method %in% c("single", "complete", "average", "median")) {
    ## complete, single, average, and median linkage_methods are basically the
    ## same idea, just different summary distance to cluster

    cluster_dist_fun <- switch(
      linkage_method,
      "single" = min,
      "complete" = max,
      "average" = mean,
      "median" = stats::median
    )

    # need this to be obs on rows, dist to new data on cols
    dists_new <- philentropy::dist_many_many(
      training_data,
      new_data,
      method = "euclidean"
    )

    cluster_dists <- dplyr::bind_cols(data.frame(dists_new), clusters) |>
      dplyr::group_by(.cluster) |>
      dplyr::summarize_all(cluster_dist_fun)

    pred_clusts_num <- cluster_dists |>
      dplyr::select(-.cluster) |>
      map_dbl(which.min)
  } else if (linkage_method == "centroid") {
    ## Centroid linkage_method, dist to center

    cluster_centers <- extract_centroids(object) |> dplyr::select(-.cluster)

    dists_means <- philentropy::dist_many_many(
      new_data,
      cluster_centers,
      method = "euclidean"
    )

    pred_clusts_num <- apply(dists_means, 1, which.min)
  } else if (linkage_method %in% c("ward.D", "ward", "ward.D2")) {
    ## Ward linkage_method: lowest change in ESS
    ## dendrograms created from already-squared distances
    ## use Ward.D2 on these plain distances for Ward.D

    cluster_centers <- extract_centroids(object)
    n_clust <- nrow(cluster_centers)
    cluster_names <- cluster_centers[[1]]
    cluster_centers <- as.matrix(cluster_centers[, -1])

    d_means <- map(
      seq_len(n_clust),
      \(.x)
        t(
          t(training_data[clusters$.cluster == cluster_names[.x], ]) -
            cluster_centers[.x, ]
        )
    )

    d_new_list <- map(
      seq_len(nrow(new_data)),
      function(new_obs) {
        map(
          seq_len(n_clust),
          \(.x)
            t(
              t(training_data[clusters$.cluster == cluster_names[.x], ]) -
                new_data[new_obs, ]
            )
        )
      }
    )

    n <- nrow(training_data)

    change_in_ess <- map(
      d_new_list,
      function(v) {
        map2_dbl(
          d_means,
          v,
          \(.x, .y) sum((n * .x + .y)^2 / (n + 1)^2 - .x^2)
        )
      }
    )

    pred_clusts_num <- map_dbl(change_in_ess, which.min)
  } else {
    cli::cli_abort(
      "linkage_method {.val {linkage_method}} is not supported for prediction."
    )
  }
  pred_clusts <- unique(clusters$.cluster)[pred_clusts_num]

  pred_clusts
}

predict helpers and overrides

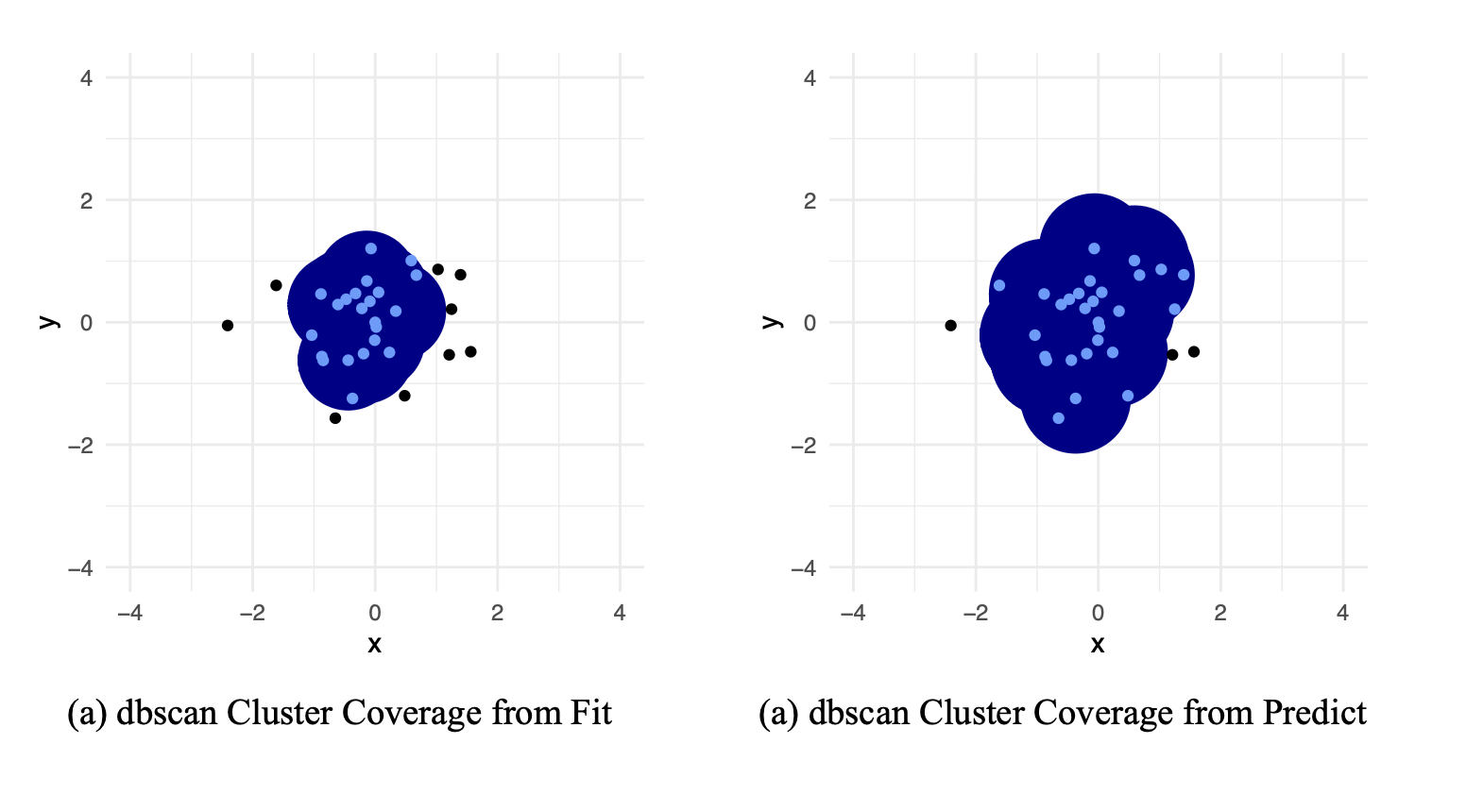

Medium mode: DBSCAN

In the DBSCAN engine:

  • Fitting:
    • Find all core points (at least min_n other points within radius away)
    • Find all boundary points (within radius of a core point)
    • Everything else is an outlier
    • “Blobs” are clusters.

predict helpers and overrides

Medium mode: DBSCAN

In the DBSCAN engine:

  • Predicting:
    • If a new point is within radius of a non-outlier, put it in that cluster

DBSCAN

predict helpers and overrides

Medium mode: DBSCAN

In the tidyclust::db_clust() implementation:

  • Predicting:
    • If a new point is within radius of a CORE POINT, put it in that cluster

predict helpers and overrides

.db_clust_predict_dbscan <- function(object, new_data, prefix = "Cluster_") {

  is_core <- attr(object, "is_core")
  training_data <- attr(object, "training_data")
  cp <- training_data[is_core,]
  cp_clusters <- object$cluster[is_core]
  eps <- attr(object, "radius")

  if (sum(is_core) == 0) {
    clusters <- (rep(0, nrow(new_data)))
    n_clusters <- 1
  } else {
    nn <- dbscan::frNN(cp,
               query = new_data,
               eps = eps,
               sort = TRUE)

    clusters <- vapply(
      nn$id, function(nns) if (length(nns) == 0L) 0L else cp_clusters[nns[1L]], integer(1L)
    )

    n_clusters <- length(unique(object$cluster[object$cluster != 0])) + 1
  }

  make_predictions_w_outliers(clusters, prefix, n_clusters)

}

The Golden Rule: predict() and fit() should always agree!!!

Unsupervised Learning Beyond Clustering

Beyond Clustering

  • Not all clustering methods are a partition (one cluster for each point)
    • Outliers (DBSCAN!)
    • Overlap of cluster
    • Cluster extraction
  • Not all clustering methods act on rows/observations
    • Itemset mining: Get groups of columns
    • Association rule mining: Get rules for columns
    • Biclustering: Get groups of row/column sets

So, what now?

Want more tidyclust? Make it!

  • If you have a favorite algorithm that isn’t implemented, you can build it!

  • (or start to, and we can help!)

  • The hard part is not (usually) the coding: it’s thinking deeply about the decisions your design scaffolds.

  • (Also: unsupervised tuning?????)

  • Lots of documentation: https://tidyclust.tidymodels.org/

Chatting about this is my absolute favorite. Find me.

Thank you!

🌐 GitHub: kbodwin

🦋 BlueSky: @kellybodwin.com

🔗 LinkedIn: kelly-bodwin-9009061a

🐘 Fosstodon: @kellybodwin
